The Primodan White Cheese Plant

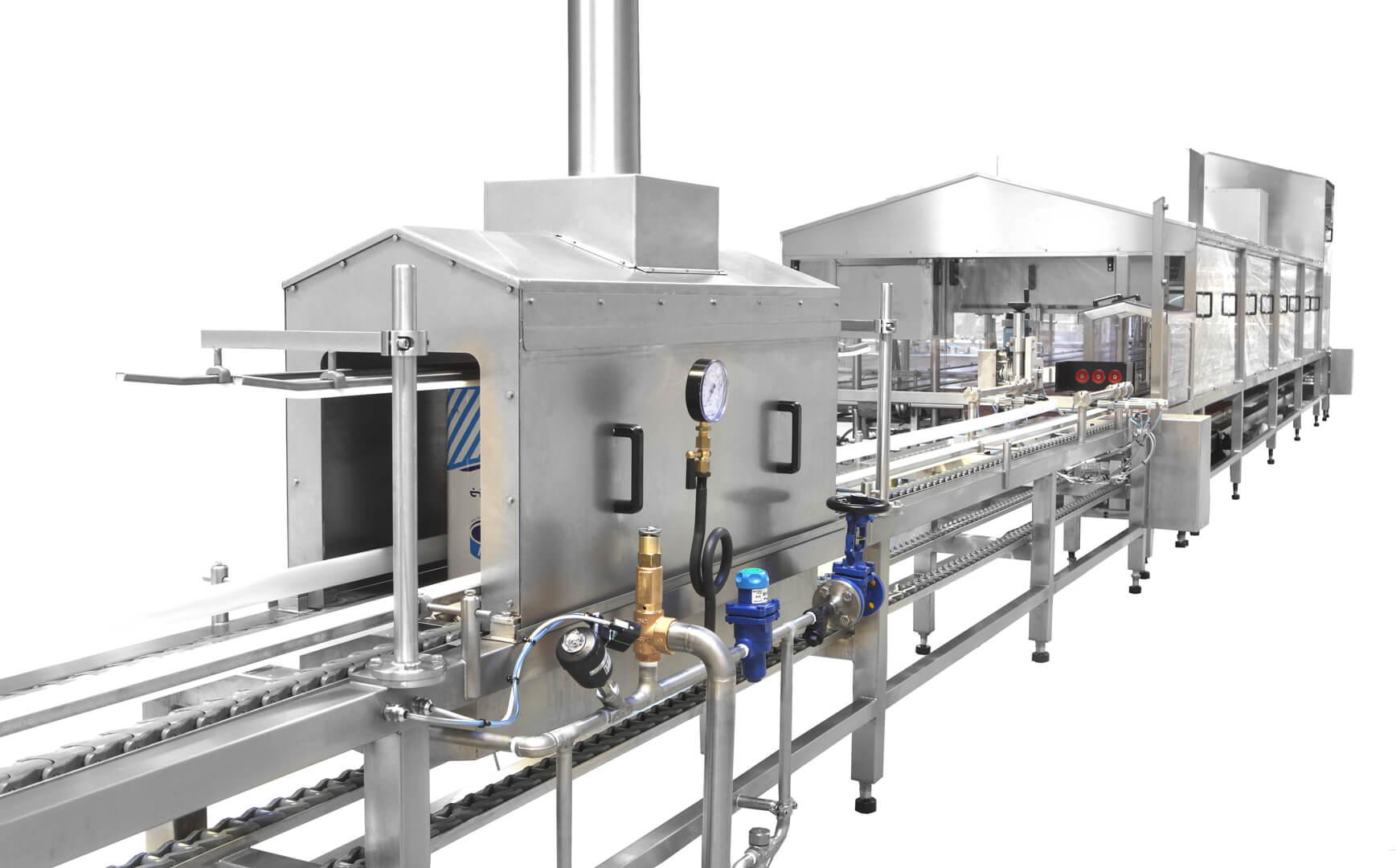

UF Canister Filling machine

For filling UF retentate or recombined cheese milk mixed with rennet into large size containers.

Primodan has delivered more than 60 white cheese plants worldwide to clients like Arla Foods, Lactalis, Almarai, Sütas, Ülker, Pinar and many other companies. Our expertise covers not only the filling lines but also the process and recipes for the production of white cheese whether being based upon an Ultra Filtration (UF) process or recombination of powder milk.

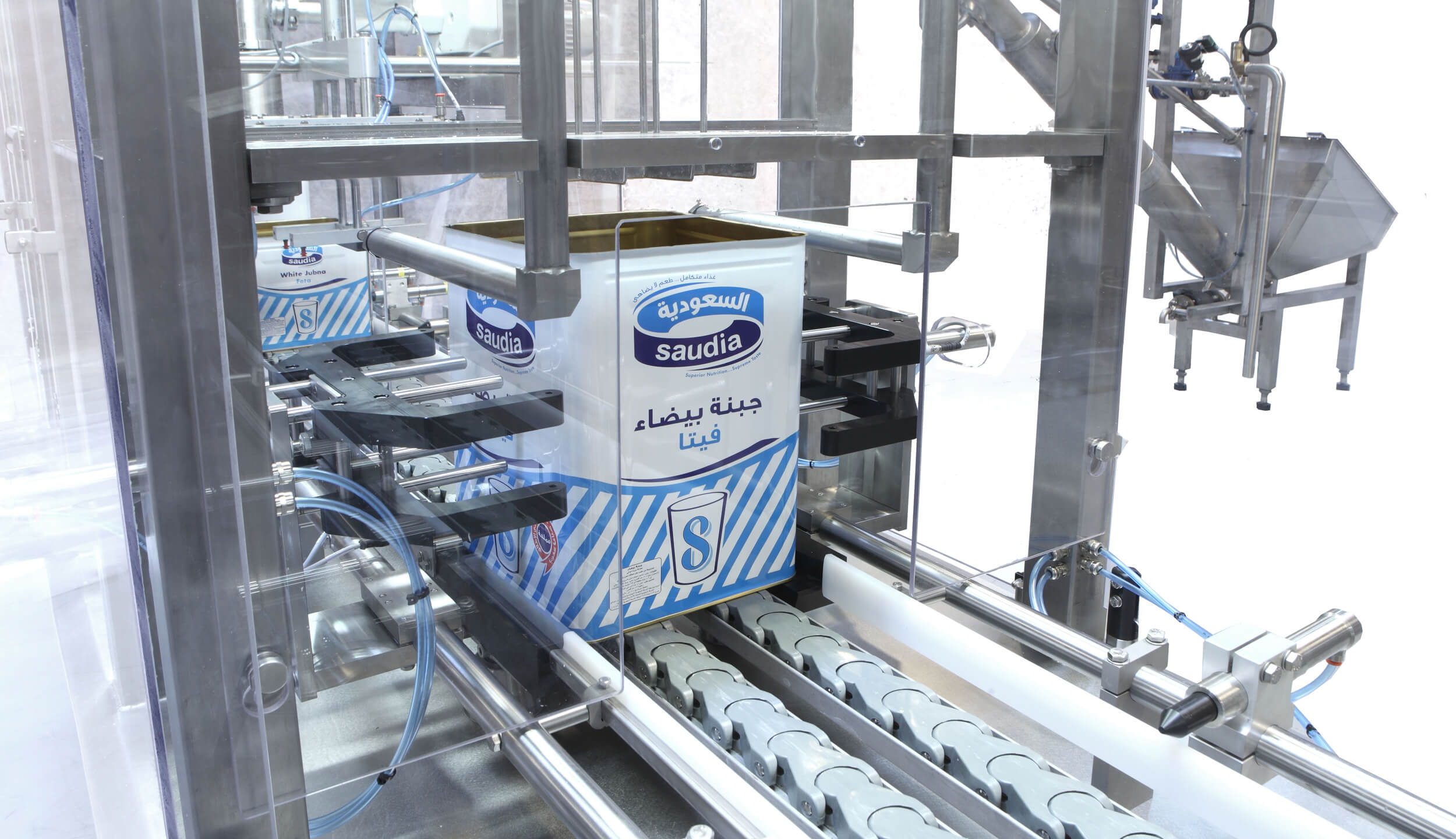

For retail containers, we can offer you fully automatic filling machines – filling into one block or layers.




Sanitary cleaning of the containers is achieved by steam injection prior to filling. When filling layers – a number of filling nozzles equal to the number of filling layers is installed on the line. After each filling, a coagulation conveyor with sterile over-pressure transports the containers from one nozzle to the next. After coagulation of the last layer, we offer various solutions depending on whether the product is fermented by means of culture or GDL. When working with culture, a membrane is dispensed on top of the coagulated cheese before it is dry salted and the container is sealed. When working with GDL fermented cheese, a salt brine is dosed on top of the coagulated cheese prior to closing the container.

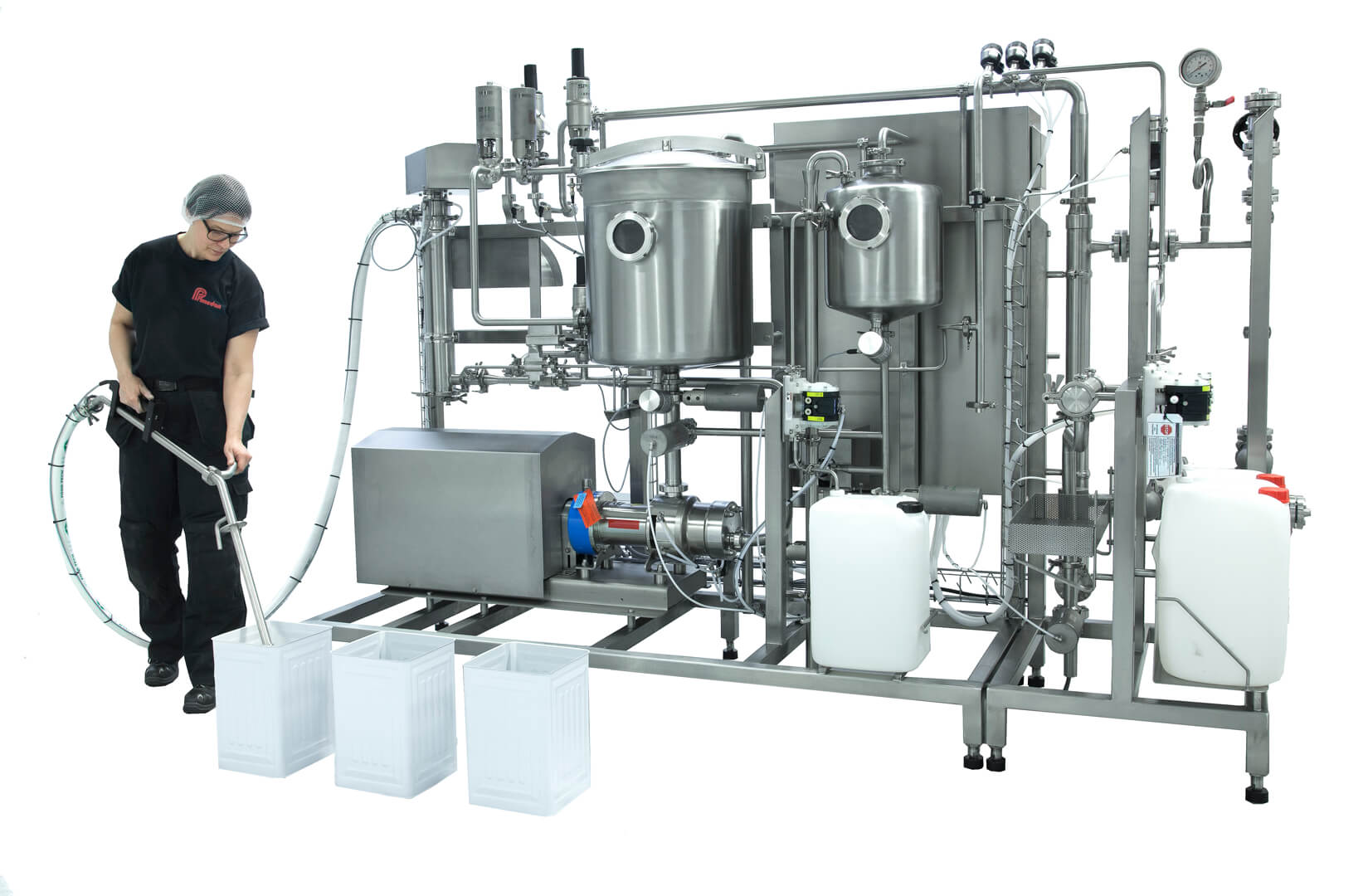

We also offer semi-automatic lines for more simple production where an operator fills the containers using a filling gun connected to a dosing unit.

The dosing unit can fill whatever volume is desired since the feed pumps are controlled by a flowmeter. The required volume is coded into the panel and a push button on the filling gun activates the dosing pumps. The dosing unit is built on a stainless steel frame and is cleaned from a centralized CIP plant or can as an option be delivered with its own CIP plant including chemical dosing.









Best product Features




Hygienic design

The design ensures hygienic production under ultra clean conditions of white cheese in retail packages such as tins or buckets

Flexibility

The plant can automatically change from one container height to another.




Efficient - High output with minimal use of manpower

The plants design allows production of 2.5 tons of cheese / hour with only a few operators







specifications and options


Technical

Capacity: Up to 125 canisters/hour
Maximum cup dimension: 300 x 300 mm
Pneumatic requirement: Minimum 6 bar
Electrical consumption: App. 12 kW
Materials: Stainless steel / ionized aluminium

CE certificate / EU Norm


Machine

Canister dispenser
Canister sterilization by steam
Filling Unit
Coagulation tunnel for 20 min.
Membrane dispenser with UV-C treatment
Dry salt dispenser
Canister seamer and closing unit


Options

Mixing module for rennet/anti stick and anti-foam preparation
Brine dosing for GDL type white cheese and acidified cheese
Extension of coagulation tunnel up to 30 min.
Cutting of the cheese in the canister into cubes.
Layered filling up to 4 layers
Salt sterilization unit
Automatic packing
