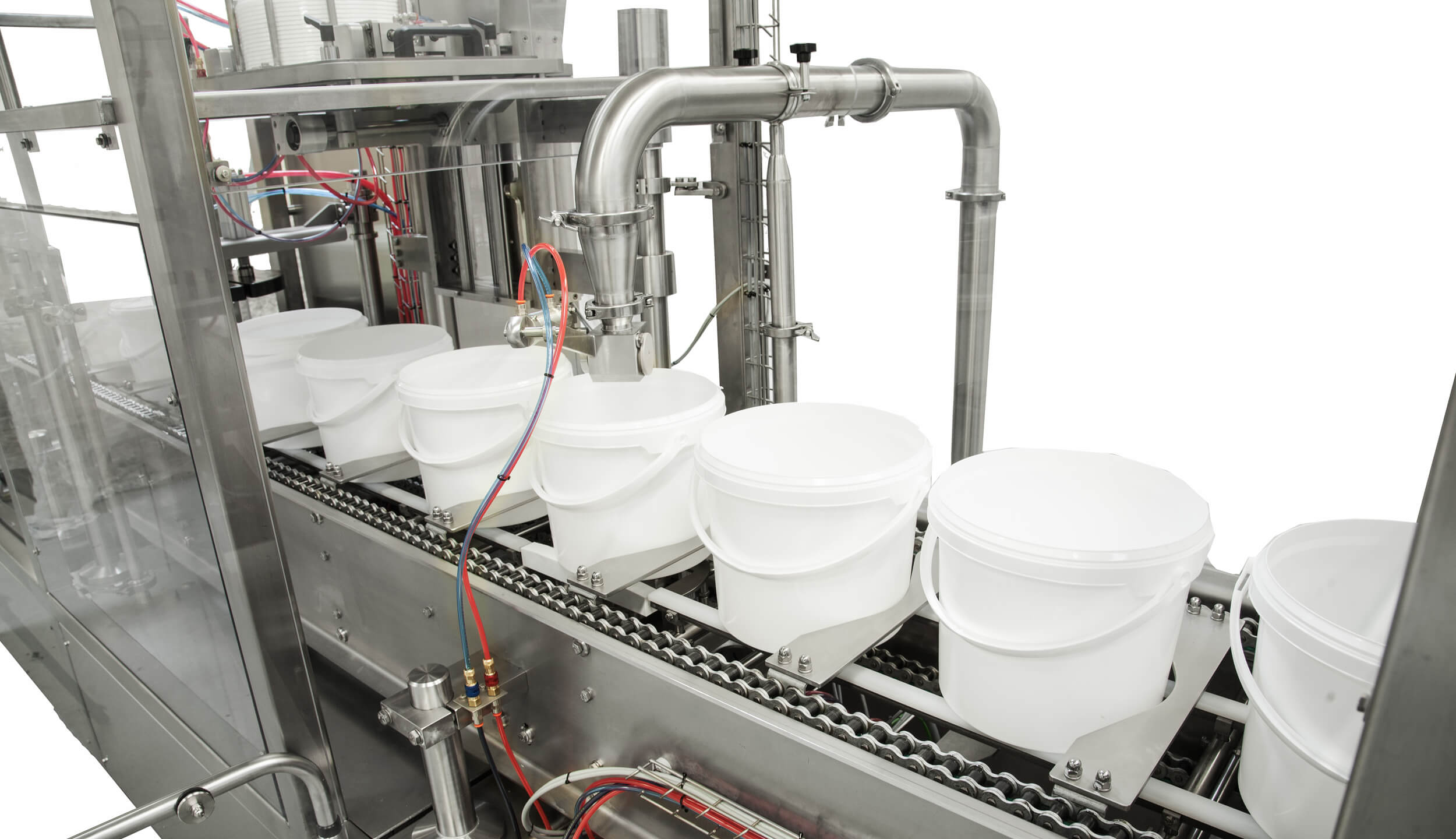

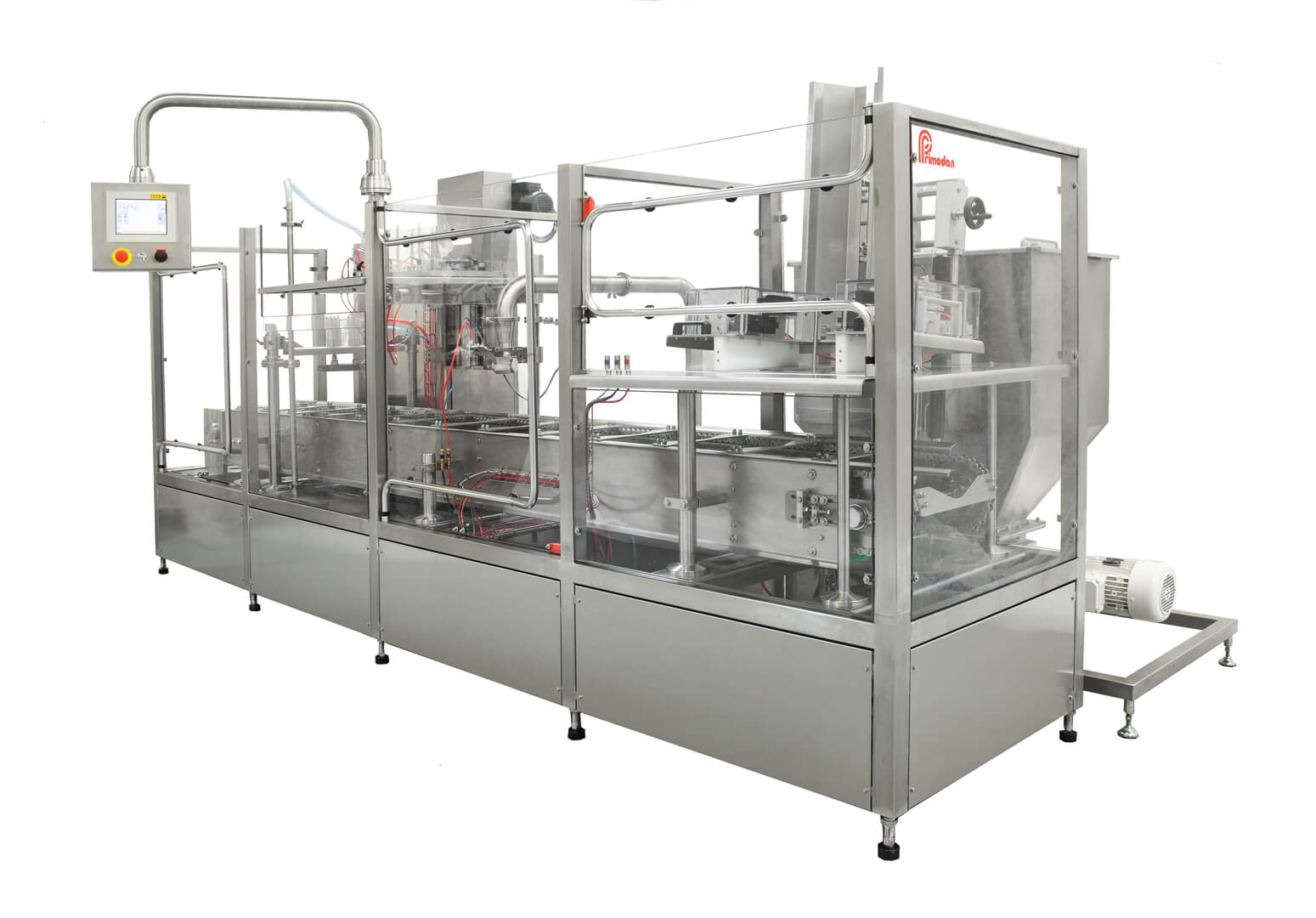

The Primodan RT LINE

Bucket filling for the Retail market

The Primodan RT LINE for buckets is available with a capacity from 600 – 3,600 buckets/hour in 1-4 rows depending on the product to be filled and the bucket dimensions.

The RT LINE is available with a wide selection of options and is tailor-made to meet your demands, regardless of whether you are going to fill liquid, semi-liquid or dry foods. The machine is very easy to clean because of the open frame design.

The drive chain is servo controlled which makes the machine able to handle several bucket sizes.
Closed roof construction with Hepa filter and over pressure cabin is also an option.











Best product Features




 Flexibility.

The RT LINE can handle several formats as the chains
with V-shaped carriers are servo-driven, resulting in automatic changeovers. The machine is able to contain a large number of applications and is able to fill many different products.

Ergonomic

The RT LINE is excecuted in ergonomic design. The drive chains are at a low height, which also makes it possible to achieve good working heights when refilling the magazines for buckets and lids.




Good hygiene

The machine is designed with an open frame for easy cleaning, which at the same time makes it very accessible.

Up to 3,600 buckets/hour

The RT LINE has a capacity from 600 – 3,600 buckets pr. hour












specifications and options


Technical

Capacity: Up to 3,600 units/hour
Maximum bucket diameter: 300 mm
Pneumatic requirement: Minimum 6 bar
Electrical consumption: 2 kW
Materials: Stainless steel

CE certificate / EU norm


Machine

Bucket dispenser
Filling and load cell
Lid dispenser
Lid press-on with 2 step ventilation


Options

Bucket buffer
Filling system – piston, flow filling or dosing pump
Foil from roll stock
UV-C treatment of roll stock foil
Lid buffer
UV-C treatment of buckets
Pulsed Light treatment of buckets
Central lubrication system
Ultra clean execution
